Ford 2.5 20v Duratec (Focus RS) I Beam Forged Rod Set

PEC Con-rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike.

Scroll to product details

Ford 2.5 20v Duratec (Focus RS) I Beam Forged Rod Set

Available options

Check options for availability

From £499.17 exc. VAT    From £599.00 inc. VAT

PEC Con-rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike.

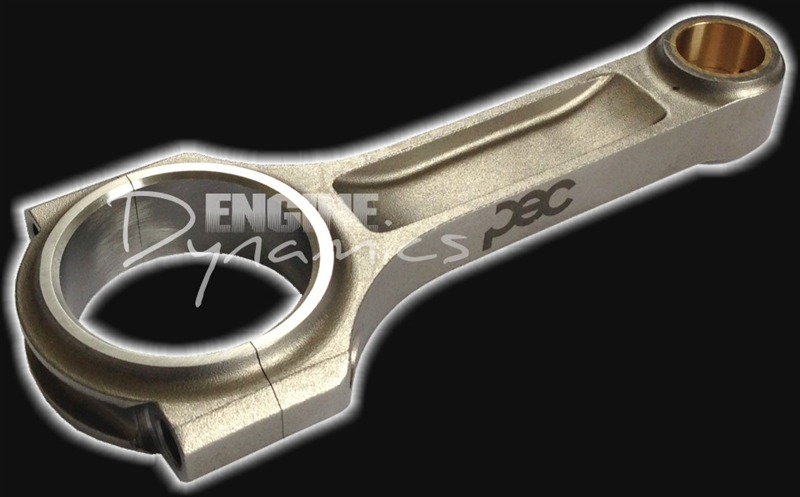

These I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and fully shot-peened for higher fatigue strength. Small end bushed for fully floating pin and big end fitted with high quality ARP fasteners. Aimed at High Performance Forced induction engines i.e. Turbo or Super Charged, the "I-Beam" rods are slightly heavier and sturdier than the H-Section rods. They can be used in the ST engine when used with Focus RS Mk2 Pistons.

All Prices include ARP Bolts, we offer an ARP 625 Bolt upgrade if required. As a guide ARP 2000 are for use up to 8500rpm and ARP 625 Bolts up to 9500rpm.



Engine Type:Duratec 5 CYL.
Rod length C/C:143.00mm
Small End:23.00mm
Big End:53.00mm
Bolts:ARP 2000 3/8"
