MLS " Multi Layer Steel" Head Gaskets

MLS " Multi Layer Steel" Head Gaskets, most of these gaskets feature a larger Cylinder diameter and different thickness's over the STD items.

Scroll to product details

MLS

Available options

Check options for availability

From £59.00 exc. VAT    From £70.80 inc. VAT

MLS " Multi Layer Steel" Head Gaskets, most of these gaskets feature a larger Cylinder diameter and different thickness's over the STD items.

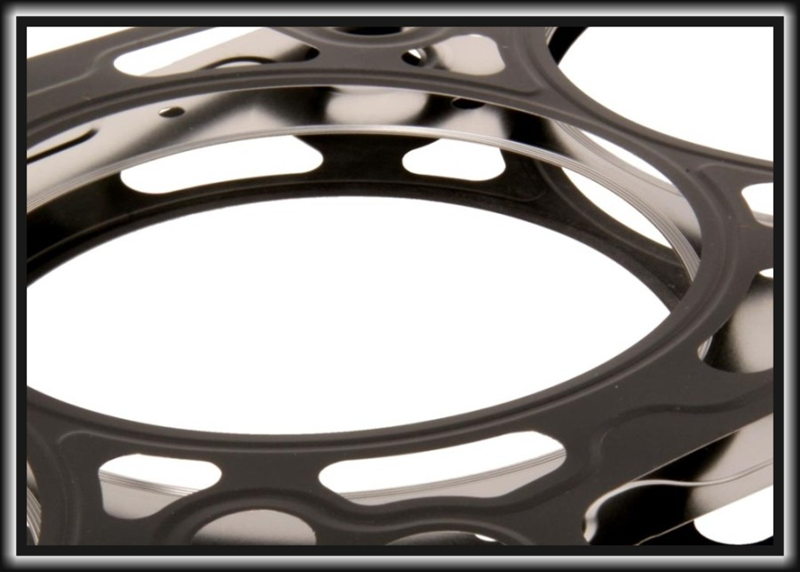

MLS gaskets are comprised of three to five layers of stainless steel. Stainless steel is used for increased strength, its ability to rebound and resist corrosion. The outer layers of the gasket are embossed and coated on both sides with a material designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes.

The centre or shim layer of the gasket is comprised of an uncoated stainless steel layer, which is varied to accommodate multiple thickness requirements. The MLS gasket is ideal for any kind of head and block combination. By design, the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

A perfect choice for customers carrying out any level of engine build, but also suitable for enlarged piston bore sizes for those re-boring the engine up to 84.00mm or perhaps wanting a different thickness for adjusting their compression ratio.

All our gaskets are 84.50mm Cylinder Bore except the 0.65mm and 1.30mm versions which are 84.00mm. As shown in the attributes list below. As a guide your gasket bore size should be at least 0.50mm larger than your cylinder size - for example if you wish to use an 84.00mm piston your gasket bore size should be 84.50mm.

Thickness's Available:-

0.65mm
0.70mm
1.00mm
1.30mm
1.50mm
1.75mm
1.90mm

For thickness reference Clio 2 Sport Engines have 0.65mm, Clio 3 are 0.70mm, Megane 2 are 1.30mm and Megane 3 Engines have 1.50mm as original thickness.


* Please select the size required from the drop down box. *

Attributes

Size 0.65mm / 84.00mm Bore
Size 1.00mm / 84.50mm Bore
Size 1.30mm / 84.00mm Bore
Size 1.75mm / 84.50mm Bore
Size 1.90mm / 84.50mm Bore
Size 0.70mm / 83.50mm Bore
Size 1.50mm / 84.00mm Bore
